功能 #2563
已关闭功能 #2519: Ford_SYSR: System Requirement
Ford_SYSR：FS_REQ0043_V2 Bin Class Current Setting
100%
描述
BIN current can be set for BIN0 to BIN7 of each channel in the configuration parameter file, the current range should be 100mA to 1500mA. The picture below for reference.
EX:
If the BIN resistor is 2500hm, the BIN class is BIN2 and BIN current is 600mA.

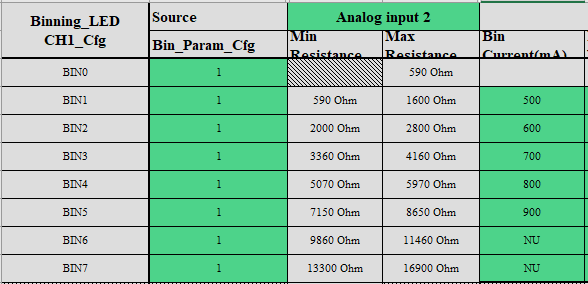

Table 16: Binning Resistor and Current Setting
BIN resistor should be read and detect the error when the LDM is powered up each time.
Power up at first time or No BIN current stored in NVM:
• If the BIN resistor is in one of the BIN range and valid, BIN current should be stored in NVM and use it as output current.
• If the BIN resistor is out of all the BIN range or invalid, LDM should use the minimum current of the channel. And set BIN error via LIN.
Each power cycle after first power up:
• Use the current which is stored in NVM as the output current at current power cycle.
• Continuously sample the BIN resistor:
i. If it is valid and same with NVM value, no operation needed.
ii. If it is valid and mismatch with NVM value, use the new value to replace the NVM value, and it will be used from next main power cycle.
iii. If it is out of all the BIN range or invalid, set the BIN error via LIN.
Note:
BIN resistor sampling should continue at least 3 cycles after power on, valid means the sampled values are same in the 3 cycles, or it is invalid.
文件
由 玉洁 金 更新于 8 个月 之前
Updated REQ0043 BIN class setting
BIN current can be set for BIN0 to BIN7 of each channel in the configuration parameter file, the current range should be 0.5A-1.5A for channel 1&2, 0.15A-1.5A for channel 3&4. The picture below for reference.
EX:
If the BIN resistor is 2500hm, the BIN class is BIN2 and BIN current is 600mA.
Table 16: Binning Resistor and Current Setting
BIN resistor should be read and detect the error when the LDM is powered up each time.
Power up at first time or No BIN current stored in NVM:
• If the BIN resistor is in one of the BIN range and valid, BIN current should be stored in NVM and use it as output current.
• If the BIN resistor is out of all the BIN range or invalid, LDM should use the minimum current of the channel. And set BIN error via LIN.
Each power cycle after first power up:
• Use the current which is stored in NVM as the output current at current power cycle.
• Continuously sample the BIN resistor:
i. If it is valid and same with NVM value, no operation needed.
ii. If it is valid and mismatch with NVM value, use the new value to replace the NVM value, and it will be used from next main power cycle.
iii. If it is out of all the BIN range or invalid, set the BIN error via LIN.
Note:
BIN resistor sampling should continue at least 3 cycles after power on, valid means the sampled values are same in the 3 cycles, or it is invalid.
由 玉洁 金 更新于 7 个月 之前
- 文件 clipboard-202411120948-5cxzx.png clipboard-202411120948-5cxzx.png 已添加
- 描述 已更新。 (差异)
- 状态 从 新建 变更为 进行中
由 传鹏 胡 更新于 3 个月 之前

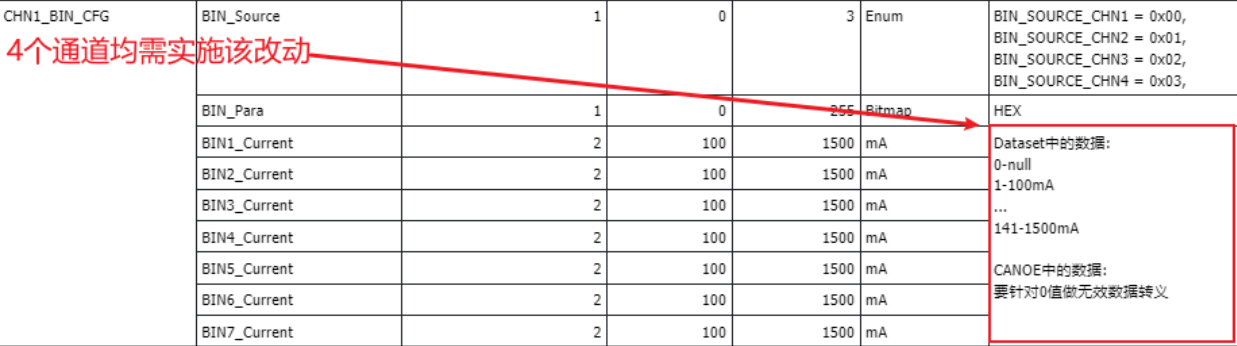

- 文件 clipboard-202503171340-0csom.png clipboard-202503171340-0csom.png 已添加
- 目标版本 从 H003_SW0007169.A001.8 变更为 H005_SW0007169.A003.2
Open Issue list 162
Dataset在设定RBIN电流下拉条中给出NULL-0的选项
APP需要解析出Dataset中设定的无效电流,如果RBIN电阻阻值落在NULL选项的电阻范围,则需要报RBIN故障
CANOE上位机对于Dataset解析RBIN电流功能,需要能识别出NULL选项并显示
