FORD LDM Localization

Since we are limited to only 7 bytes of data (besides the LIN Status Byte), transmitting a 23 character part number will take several packets. Like the configuration data, we use one byte to indicate an index and the rest of the bytes (6 others) are the data.

DLPL_LIN_20_001 – Part Number Sequencing
To allow the LIN Node manufacturer to reduce cycle time on their production line, the LIN Node is allowed to start with any PartNumIndex. They then cycle through the remaining indices. Once they repeat the very first PartNumIndex value, the LIN controller will consider the Part Number complete. All unused bytes must be set to 0 (NULL).
Notice that PartNumIndex is multiplied by 6 when placing the partial part number data in the correct location. Refer to the DLPL_LIN_20_003 – Node Part Number Mapping for more information.

DLPL_LIN_20_002 – Controller Part Number Retention
The LIN Controller will erase these part numbers when the ignition is cycled to avoid misreporting LIN Node part numbers due to replacing one in service.

DLPL_LIN_20_003 – Node Part Number Mapping

PartNumIndex Value	PartNumData Byte	LIN Controller PartNumber Data
0	Data0	PartNum0
0	Data1	PartNum1
0	Data2	PartNum2
0	Data3	PartNum3
0	Data4	PartNum4
0	Data5	PartNum5
1	Data0	PartNum6
1	Data1	PartNum7
1	Data2	PartNum8
1	Data3	PartNum9
1	Data4	PartNum10
1	Data5	PartNum11
2	Data0	PartNum12
2	Data1	PartNum13
2	Data2	PartNum14
2	Data3	PartNum15
2	Data4	PartNum16
2	Data5	PartNum17
3	Data0	PartNum18
3	Data1	PartNum19
3	Data2	PartNum20
3	Data3	PartNum21
3	Data4	PartNum22
3	Data5	PartNum23

Table 43: Multiplexed PartNumIndex/ParNumData Mapping to LIN Controller PartNumber Data

The part number for the LDM is LC5A-13B626-A* or ML3A-13B626-A*, where * is revision A, B, C etc. The revision shall be updated in software for each hardware and software release after the initial P-Release.

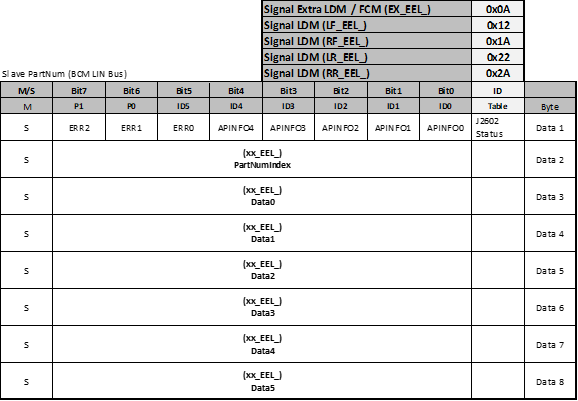

Table 45: LIN Part Number Reporting Frame

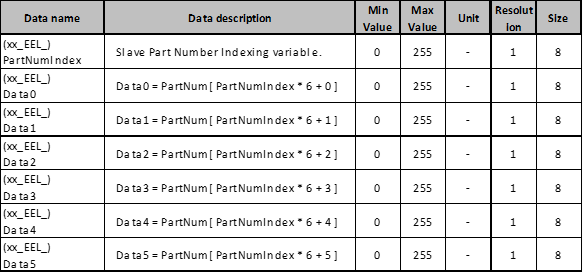

Table 46: LIN Part Number Reporting Frame Definition
