FORD LDM Localization

No ramping is required between 0 and 5%, 8 bit resolution is required. A non-linear ramp per Steven’s Power Law shall shall be used to calculate each PWM ramp. The lighting functions will use a cubic ramp where possible unless specifically exempted.
For features that use linear fading the segments 0% to 5% (during fade in) and 5% to 0% (during fade out) are the most noticeable changes in luminous output due to how the human eye perceives light. The first 5% of the fade in and last 5% of the fade out will need to be longer to appear smooth. Multiplying the normal linear duration by 4 for these 5% will allow the light fade to appear smoother.

Step 1: The LDM shall calculate target duty cycle following the based on the input ramping speed/configured fade speed.

Step 2: LDM shall calculate the fading speed for all LEDs using the transition. Transition time is defined as time to reach 100% light intensity. (ms/100%) The LDM shall use provided transition time to recalculate the LED current duty cycle curve (Value Table) following Stevens power law. (s. Example below)

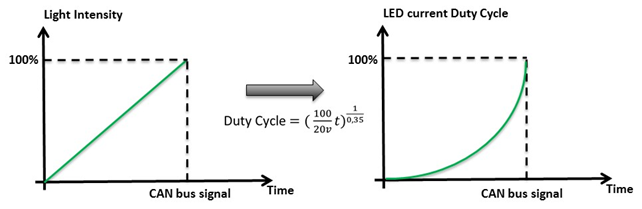

Figure 9: Smooth Fading curve
v: Transition speed as time to reach 100% light intensity (ms/100%)
t: Time (ms)

For example:
‘HB_fade_slow_spd_cfg’ is set to 0x06. (800mS fading time to reach 100%) Fading time for first 5% would be 40ms without smooth fading. Multiplying by a factor of 4 means that the first 5% of fade will last 160ms. Subsequently the remaining 95% will take 640 ms.
